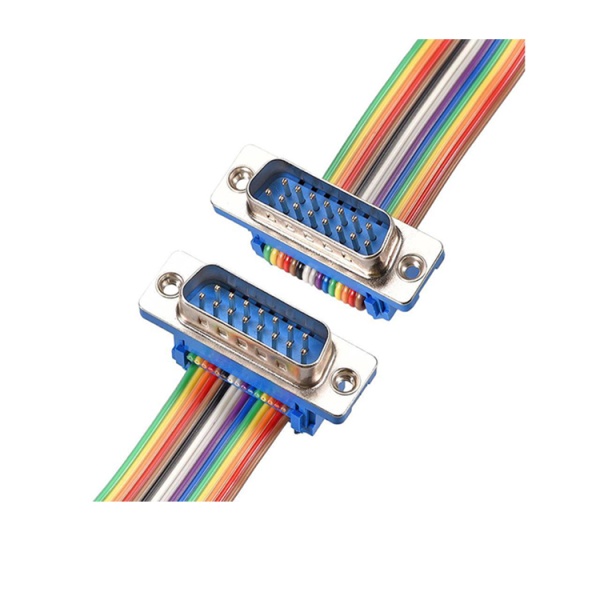

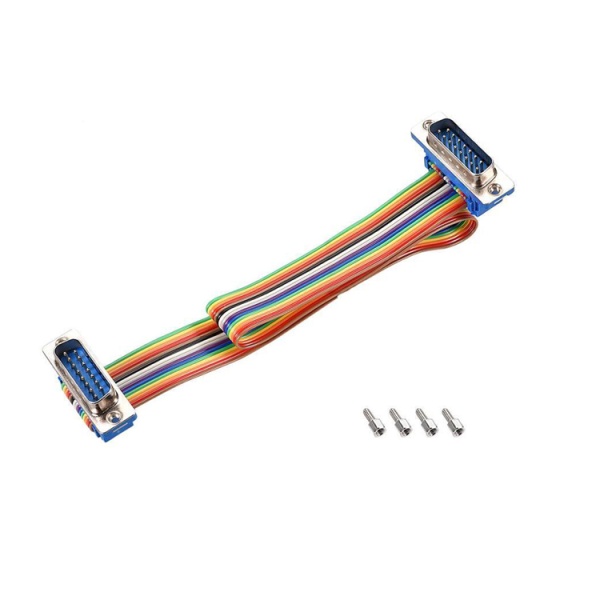

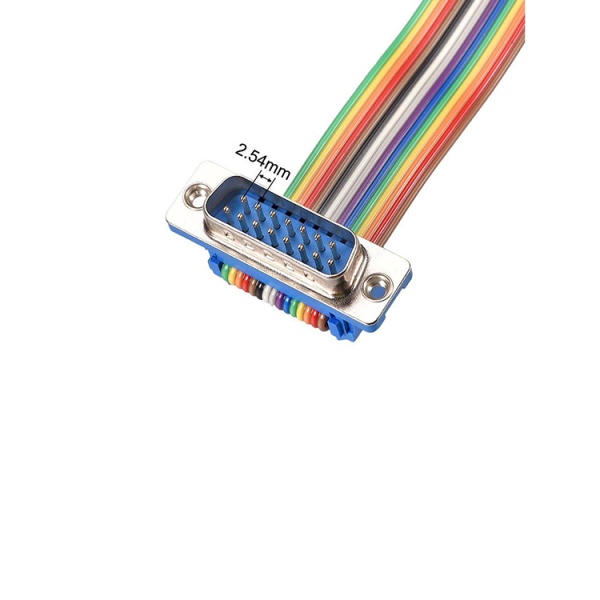

DB15 male Connector 2.54mm Pitch Flat Ribbon Cable

DB15 male Connector 2.54mm Pitch Flat Ribbon Cable Starte DB15 male Connector 2.54mm Pitch Flat Ribbon Cable. Also named DB15 Male to Male Serial Ribbon Flat Cable. It has D-sub 15 pin male connector on each end. Supposed to extend the length between DB15 analog port on the PLC and DB15 port on the external analog interface board.   Product Parameters of DB15 male to D-sub 15 pin male IDC Ribbon Cable: Item DB15 male Connector 2.54mm Pitch Flat Ribbon Cable Brand Starte Model No. SIDC007 Cable Type Serial Flat Cable Connector 1 D-sub 15pin male connector Connector 2 DB 15pin male connector Gender male to male Wire UL2651 32AWG 30AWG 28AWG 26AWG 24AWG Conductor Copper Cable spacing 1.27mm, 0.635mm 1.0mm 2.0mm 2.54mm allowed Screw Size 4-40 Application PLC Color Rainbow Sample Allowed MOQ 500 pcs Package PE bags Warranty Two years OEM Support Feature of DB15 male connector analog interface ribbon Cable: 1) D-sub 15 pin male to male Ribbon flat Cable 2)Straight connection, support custom 3)Easily and directly inserted , with 4-40 mounting screws. 4)Save space and time on circuit interconnecting assemblies. 5)Suitable for internal wiring in PLC.   Application of D-sub 15 pin male to male rainbow flat Cable: This DB15 male Connector 2.54mm Pitch Flat Ribbon Cable is supposed to extend the length between DB15 analog port on the PLC and DB15 port on the external analog interface board.
