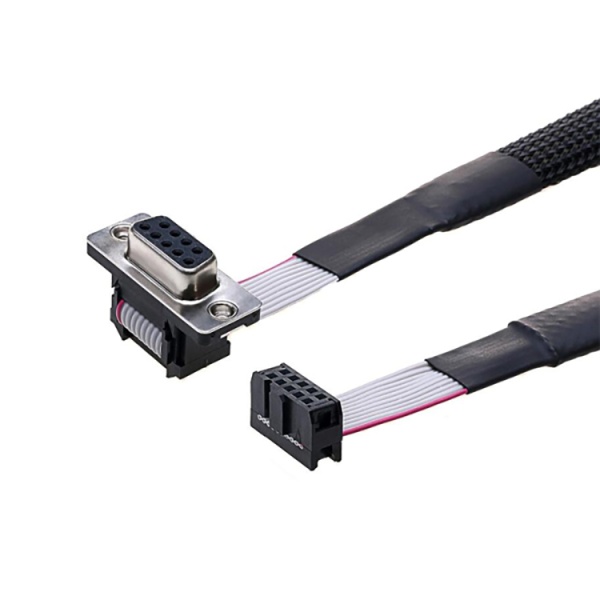

DB9 Female Panel Mount to 10 Pin IDC Ribbon Flat Cable

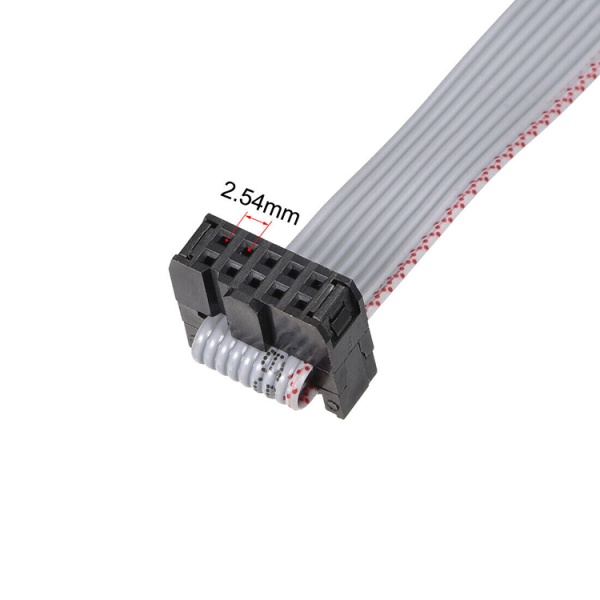

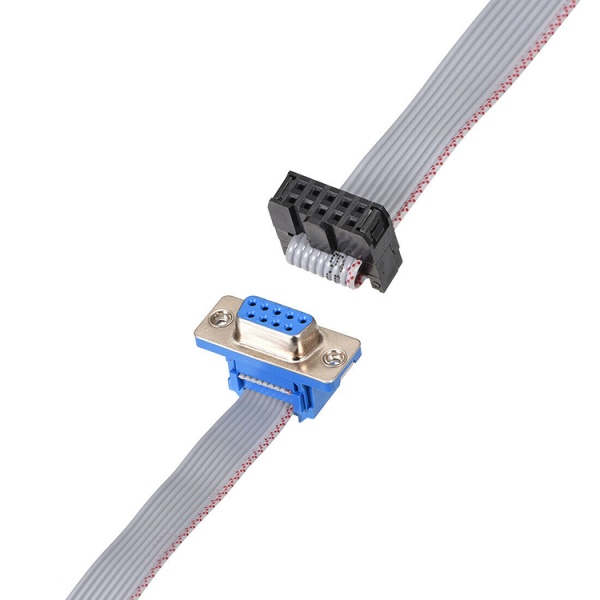

DB9 Female Panel Mount to 10 Pin IDC Ribbon Flat Cable Starte DB9 Female Panel Mount to 10 Pin IDC Ribbon Flat Cable. Also named DB9 Female Connector To IDC 10 pin flat ribbon Cable. It has a DB9 female RS232 ribbon connector on one end and a 2×5 10 pin 2.54mm pitch IDC motherboard connector on the other end. You can use it to add a serial port to rear panel on a computer motherboard or some I/O Cards.   Product Parameters of DB9 female to 10 pin 2×5 Motherboard Header Cable: Item DB9 Female Panel Mount to 10 Pin IDC Ribbon Flat Cable Brand Starte Model No. SIDC002 Cable Type Serial Flat Cable Connector 1 2.54mm pitch DB9 female connector Connector 2 2.54mm pitch 10 pin female connector Gender female to female Wire UL2651 32AWG 30AWG 28AWG 26AWG 24AWG Conductor Copper Cable spacing 1.27mm, 0.635mm 1.0mm 2.0mm 2.54mm allowed Screw Size 4-40 Application Computer, motherboard, PoKeys stepper Color Grey Sample Allowed MOQ 500 pcs Package PE bags Warranty Two years OEM Support     Feature of DB9 Female to 10way IDC serial Ribbon Cable: 1)Internal 10-pin IDC socket to external DB-9 female Cable 2)Standard pin layout:1-1 2-2 …9-9 3)Connect to the motherboard or I/O adapter via flat ribbon cabling. 4)Serial port expansion 5)Compatible with most brands of motherboards and I/O cards.   Application of DB9 female to IDC 10 pin serial Ribbon Cable: This DB9 Female Panel Mount to 10 Pin IDC Ribbon Flat Cable is suitable to add a serial port to rear panel on a computer motherboard or some I/O Cards. Compatible with most brands of motherboards and I/O cards.
