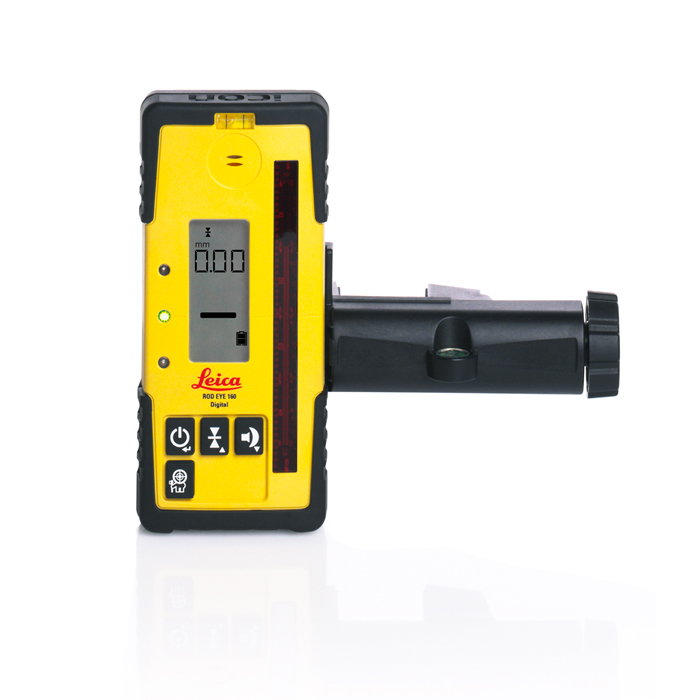

Professional laser receiver Digital readout – the large numbers are clear and easy to read so you can stay on grade. Capture function allows the user to store and display a measurement. Anti-strobe protection detects and ignores the flash from strong strobes on the job. Capture digital readout for convenient height readings Range: 1350m Digital Readout LCD front & back Level vial Strobe rejection IP67: sealed against water Detection window: 120mm Supplied with: Rod Eye 160 3 Year warranty Professional receiver Anti-strobe Protecton – Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function Beam Finding – Passing the receiver through the laser beam will cause the receiver to beep twice quickly. Out of Beam Display – If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam. Laser Low Battery – A small laser icon on the receiver display alerts the user when the batteries are getting low. Features of the Leica Rod Eye 160 Digital Digital Readout – The large numbers are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as you lock on the laser beam. LCD Indication – Two, large graphic displays on the front and back of the receiver. LED Indication – Three bright LEDs can be used as a ready reference for the receiver position. Capture Function – The capture button allows the user to store and display a measurement. Menu Function – Additional options are available to set your functional preferences. Level Vial – Ensures good alignment and improves your reading accuracy. Exceptional Reception – The extra long reception window includes the unique technology that provides the accurate digital input. Audio Indication – Four audio settings. Up to 110 decibels for noisy jobs. Units of Measure – Digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet. Versatile Rod Bracket – A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb. Protective Overmold – Protects the receiver from drops in tough jobsite conditions. Features Popular with Working radius : 1350m (4430 ft) General Construction Detection accuracies: Very fine ± 0.5 mm (± 0.02 in) Fine ± 1.0 mm (± 0.04 in) Medium ± 2.0 mm (± 0.08 in) Coarse ± 3.0 mm (± 0.12 in) Very Coarse ± 5.0 mm ( ± 0.20 in) Detection Height: 120 mm Detection Height: 120 mm Detectable laser beam: 600 nm to 800 nm Audio Volumes: High 105 dBA Medium 95 dBA Low 65 dBA Off Batteries: 50 hours (2 x 1.5V “AA”) Automatic shut-off: 10 minutes, 24 hours, none IP67 for water & dust resistance Leica Rod Eye Series Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Leica Rod Eye Series – Technical Data Sheet Leica Rod Eye 160 User Manual Leica Rod Eye Technical Data Sheet
