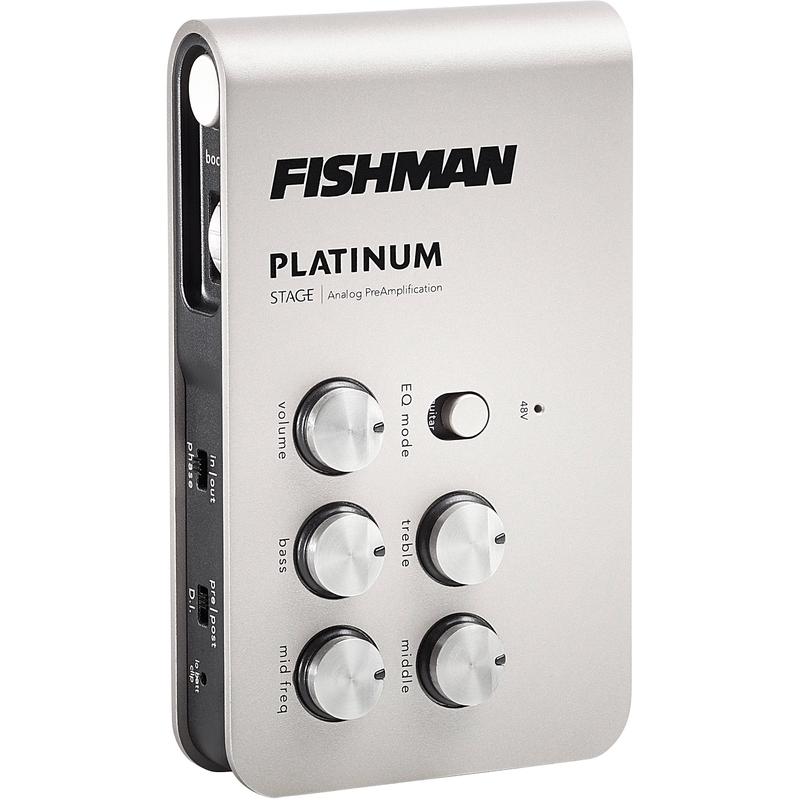

OVERVIEW Intended for acoustic guitar, bass, or any other acoustic instrument with a pickup and a 1/4\” output, theFishman Platinum Stage EQis a belt-mountable preamp and DI boasting an analog signal path and tone-shaping options. Connections are possible via 1/4\” input and 1/4\” output jacks, though theres also an XLR DI for feeding audio straight to the houses PA, mixer, or a recording interface. This output is pre-/post-EQ switchable, meaning you can route a tonally shaped or unprocessed signal through this section of the preamp. It can also provide 48V phantom power to the unit. The preamp itself utilizes a high-headroom Class-A design, with a four-band EQ section that can be voiced separately, by means of a switch, for bass and guitar. A phase switch aids you in the never-ending battle against feedback in live scenarios. To add a little more volume for solos or other stand-out sections, a boost button has been provided, its level of gain adjustable by means of a wheel located next to the button. Simply depress this button to engage the boost. Youll also find an input trim pot to better attenuate your pickups to the signal path provided by the Platinum Stage. It comes with a belt clip for easy on-stage attachment to your person. In addition to drawing upon 48V phantom power, the unit can run using a 9V battery, or with an optional power supply. SPECIFICATIONS Audio Connections 1 x 1/4\” instrument input, phone type1 x 1/4\” instrument output, phone type1 x XLR DI output Tone Controls Low Cut control: 30, 80, and 160 HzBass control: 12 dB at 150 Hz (guitar), 12 dB at 115 Hz (bass)Middle control: 12 dB at 200 Hz to 3.1 kHz; Q = 1.3Treble control: 12 dB at 6 kHz (guitar), 12 dB at 3 kHz (bass) Controls Volume knobBass knobMid Freq knobTreble knobMiddle knobEQ Mode selectorLow Cut selectorPre-/Post-EQ selectorPhase In/Out selectorBoost buttonBoost wheelInput trim pot Impedance Input: 10 MOhmsOutput: 1 kOhm (amp, nominal); 600 Ohms (XLR DI, nominal) Input Trim Gain range: -6 to 14 dB Output Amp level: – to 6 dBVXLR level: -10 dB relative to input (pre EQ), -6 dB relative to input, (post EQ) Noise Baseline: -93 dBV, A-weighted Dynamic Range 100 dB, A-weighted Power Supply 9 V battery, 48 V phantom power, or 9 V adapter (available separately) Power Adapter Fishman 910-R (for 110 V) or suitable filtered and regulated, 200 mA type, tip = negative Current Consumption 7 mA, typical in-use Battery Life (approx.) 70 hours using alkaline battery
